See the package
before you commit to anything.
A representative excerpt of what a single structural engagement looks like when it leaves Aedo Engineering — analysis summary, CAD documentation, and a reconciled BOM/BOQ — so you can judge the format and rigor before sending your own scope.
Cockpit Arena Building — Manjuyod, Negros Oriental

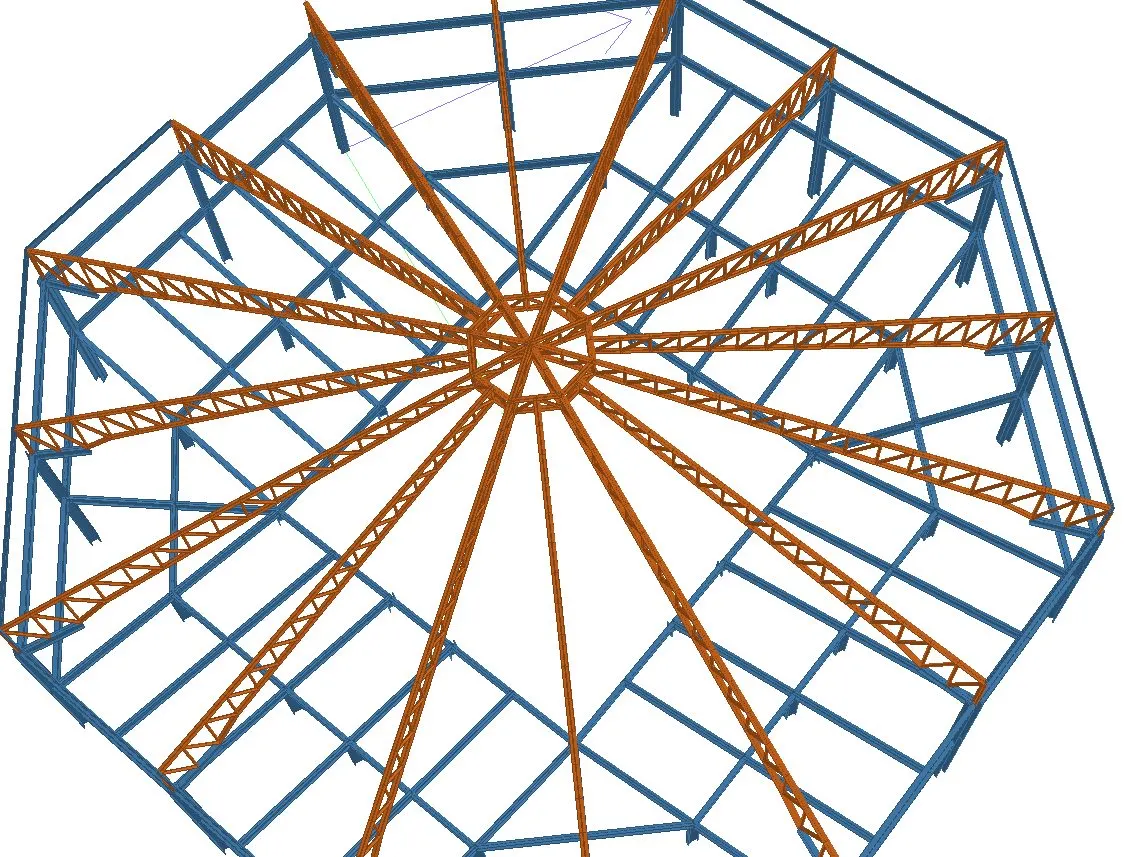

A large-span, column-free arena roof: complex radial steel trusses engineered to NSCP 2015 for wind and seismic loads, with no interior columns to interrupt the venue. Same workflow shown below — analysis, CAD documentation, and structural BOM/BOQ — that we'd run for an overflow scope from your firm. We've also completed jobs like the structural certification and anchor design for rooftop commercial signage (Cybergate Dumaguete 1) — same process, smaller scope.
Governing member checks
Every member is checked against the controlling load combination, with demand-to-capacity ratios reported the same way a domestic reviewing engineer would expect to see them.
| Member | Governing combo | Demand | Capacity | Util. | Status |
|---|---|---|---|---|---|
| Main frame rafter (tapered, ridge) | 1.2D + 1.0W + 0.5L | 184 kip-in | 241 kip-in | 0.76 | PASS |
| Main frame column (eave) | 1.2D + 1.0E + 0.2S | 96 kip-in | 138 kip-in | 0.70 | PASS |
| Roof purlin, typical bay | 1.2D + 1.6W(uplift) | 2.4 kip | 3.6 kip | 0.67 | PASS |
| Wall girt, typical bay | 1.2D + 1.0W | 1.1 kip | 1.9 kip | 0.58 | PASS |
| Column base plate + anchor group | 0.9D + 1.0W(uplift) | 31.2 kip | 38.7 kip | 0.81 | PASS |
Actual drawing sheets from an AEDO structural set
Real excerpts, not mockups — a beam/roof framing plan with member callouts and connection details, and a foundation set with pedestal reinforcement, anchor bolt layout, and a 3D footing render.

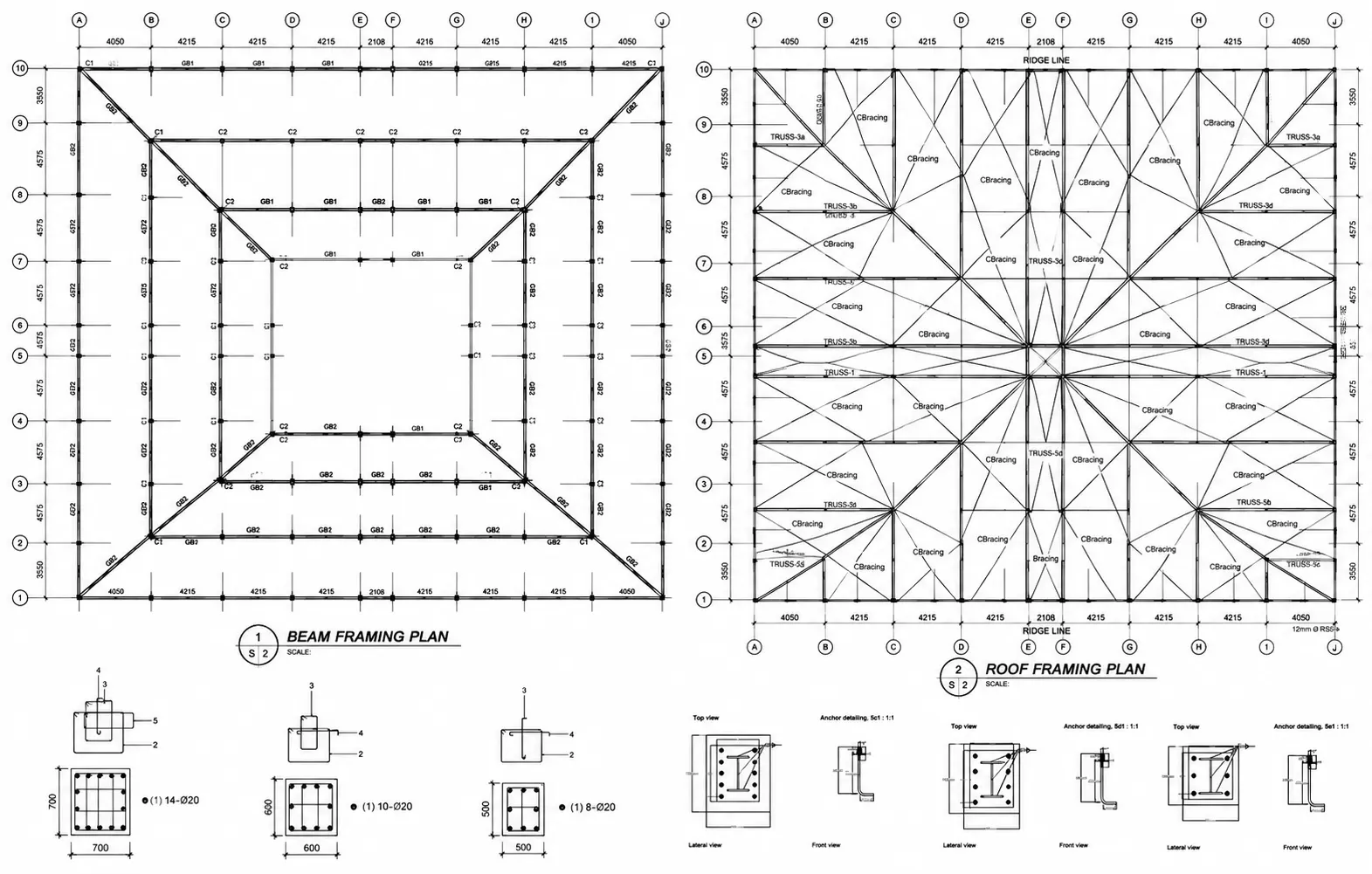

Sheet excerpt — beam framing plan (left) and roof framing plan with radial cross-bracing (right), plus column base connection details.

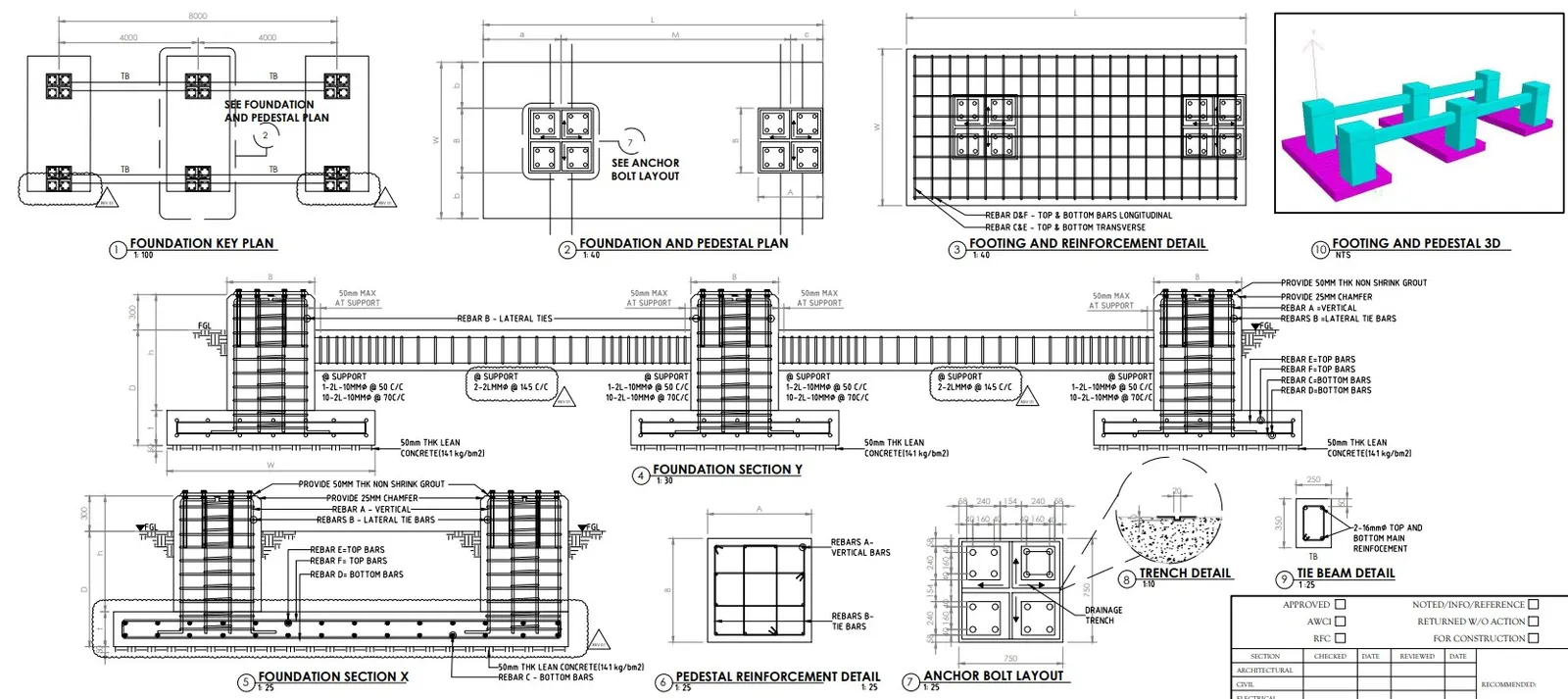

Sheet excerpt — foundation key plan, footing & pedestal reinforcement, anchor bolt layout, tie beam detail, and a 3D footing render, with the review/approval block a real submission set carries.
Structural quantities, reconciled to the drawings
Quantities are taken off the same model and drawing set used for design — not estimated separately — so the numbers your estimator works from match what's actually shown.
| Item | Description | Unit | Qty |
|---|---|---|---|
| 1 | Main frame, tapered rafter + column (fabricated built-up sections) | tons | 18.4 |
| 2 | Roof purlins, Z-section, typical bay | tons | 4.1 |
| 3 | Wall girts, C-section, typical bay | tons | 2.8 |
| 4 | Bracing, roof + wall (rod/cable) | tons | 0.6 |
| 5 | Column base plates, incl. stiffeners | ea | 14 |
| 6 | Anchor bolts, 1" dia. incl. embedment | ea | 56 |
What every package goes through
A second engineer independently reviews the analysis and design before drawings are touched.
Drawings are checked against the calculation package member-by-member, not signed off independently.
BOM/BOQ quantities are reconciled back against the final drawing set before delivery.
Everything is packaged for your locally licensed engineer to review, approve, and seal.
