Structural Design · Large-Span

Cockpit Arena — Concepcion, Tarlac

A 1,681 sqm arena of steel and precision — engineered for crowd, performance, and decades of service.

Structural DesignLarge-SpanSteel Structure
Concepcion, Tarlac 1,681 sqm Floor Area Completed Design & Consultancy
Message us on Viber
Cockpit Arena — Concepcion, Tarlac — image 1
Cockpit Arena — Concepcion, Tarlac — image 2
Cockpit Arena — Concepcion, Tarlac — image 3
At a glance

Project facts

Location
Concepcion, Tarlac
Structure type
Large-span steel arena
Scope
Design & Consultancy
Code compliance
NSCP 2015
Status
Completed
The proof, not just the promise

Challenge, approach & result

1

Challenge

A 1,681 sqm arena needed large-span roof framing capable of safely handling crowd and performance loads.

2

Approach

Designed complex radial steel roof framing with arena-grade load analysis and full NSCP seismic and wind compliance.

3

Result

A completed structural design for a large-span arena built to perform and last.

From the drawing set

The engineering behind it

Excerpts from the structural drawing set we produced for this project.

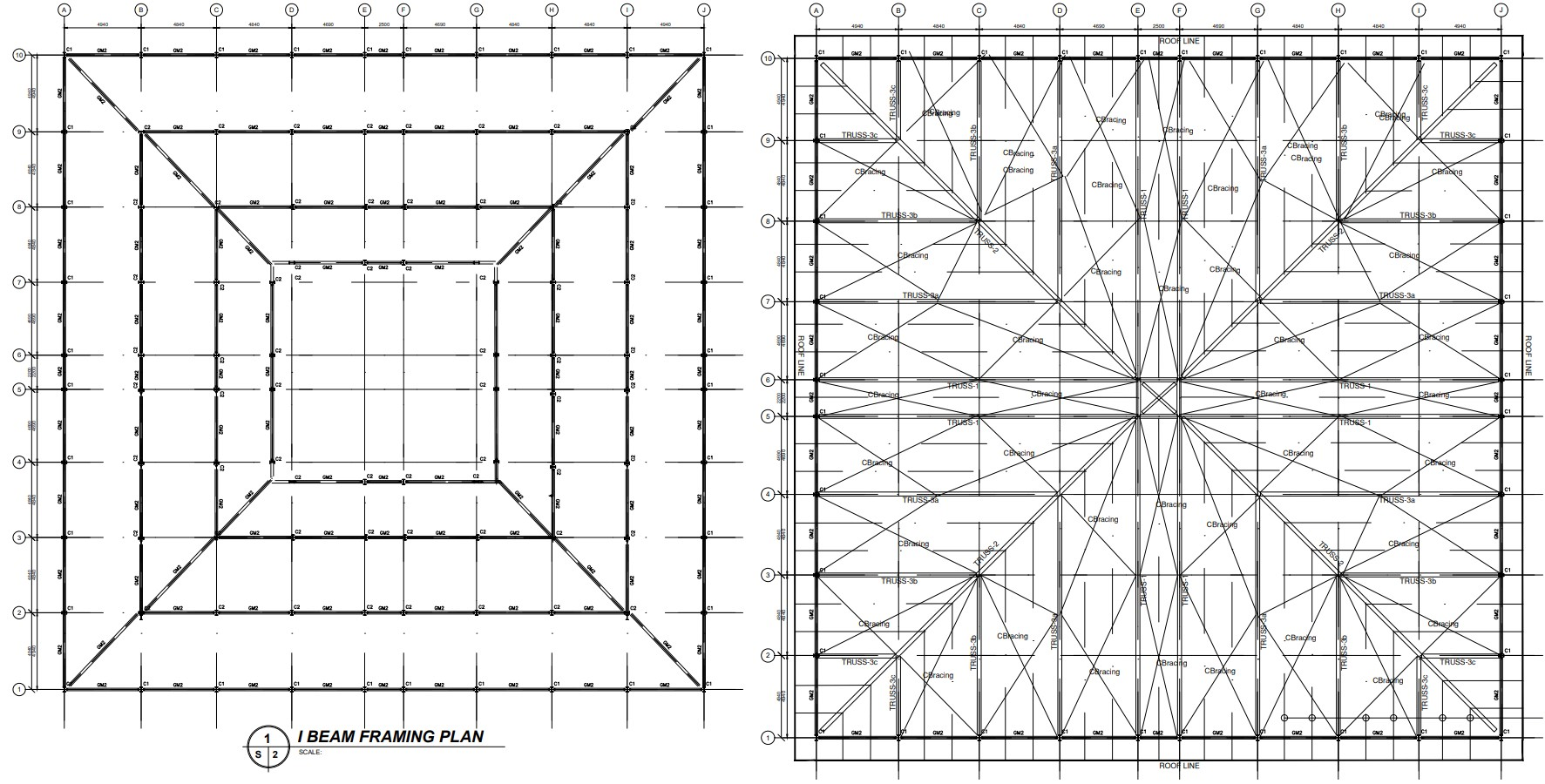

I-beam framing plan and roof truss layout, Tarlac cockpit arena
Roof framing & truss layoutI-beam framing plan and the radial truss arrangement with continuous cross-bracing across the roof.

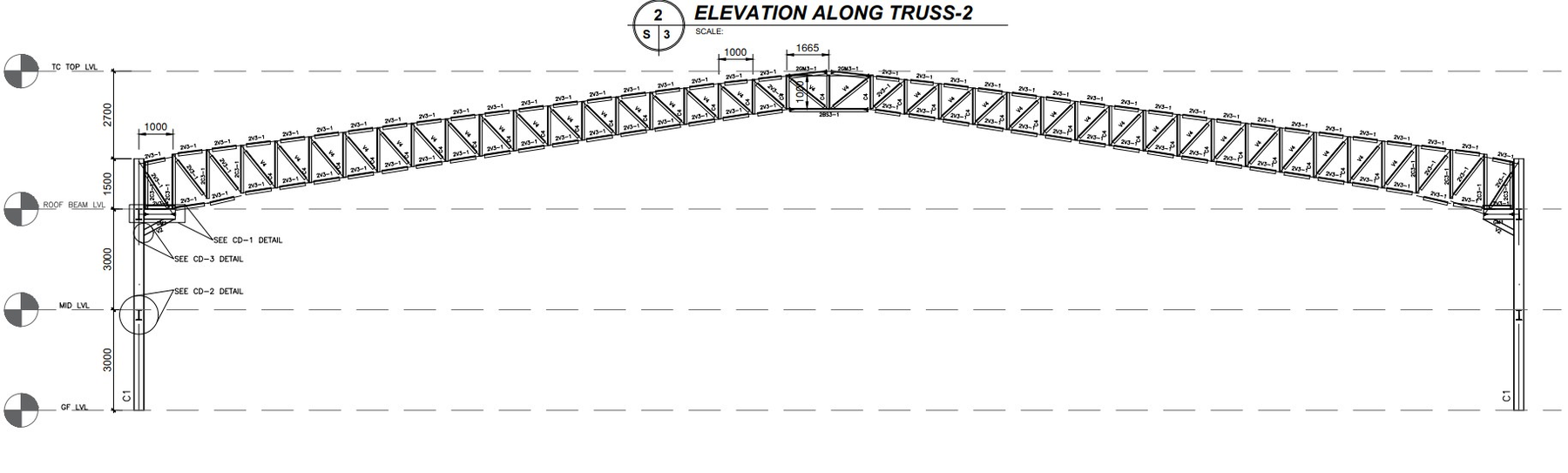

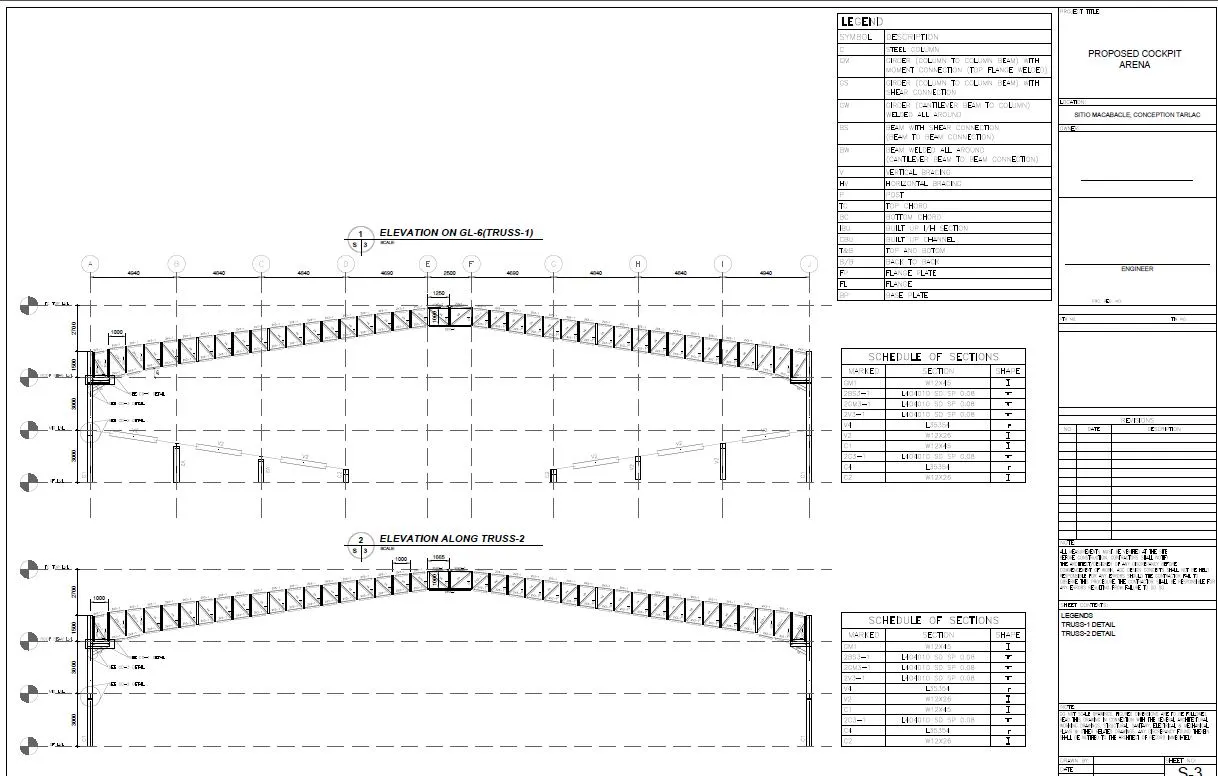

Long-span steel truss elevation, Tarlac cockpit arena
Truss elevationThe pitched long-span truss clearing the full arena width — no interior columns interrupting the sightlines.

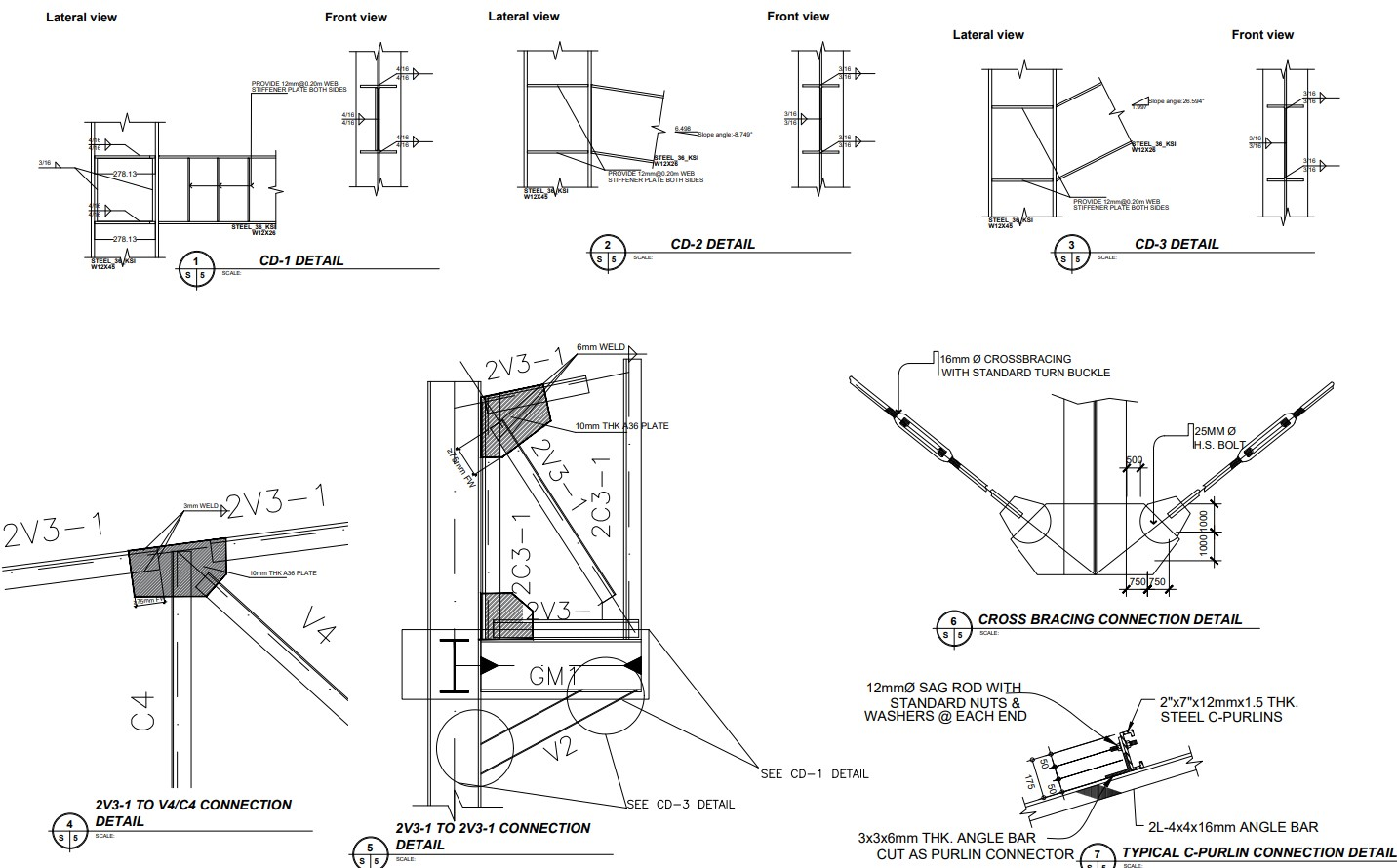

Steel connection details including cross bracing and purlin connections, Tarlac cockpit arena
Connection detailsGusseted truss joints, 16 mm cross-bracing with turnbuckles, and C-purlin connections — every joint detailed for fabrication.
