Short answer: a perimeter wall at a plant, terminal or warehouse is a structure, even if it was built as a fence. In Seismic Zone 4 the structural code's strength design rules treat a wall that resists wind or earthquake out of plane as needing at least 150 mm (NSCP Section 708.2.4.4), so a 100 mm hollow block wall doesn't qualify. And the owner carries the liability if it comes down for lack of repairs.
It's easy to leave a long perimeter wall alone until something happens. A crack opens at the base. A section starts leaning toward the road. A guard notices the wall moves when a truck passes. At that point the question isn't whether to look at it, it's how much of it has to come down.
Enter what you can measure from the ground. The check compares the wall with the NSCP 2015 masonry minimums for Seismic Zone 4 and flags what needs an engineer on site.
NSCP 2015 Section 208.4.4.1 puts the whole country in Seismic Zone 4 except Palawan (other than Busuanga), Sulu and Tawi-Tawi. Chapter 7 then treats Zone 4 masonry strictly. These are the provisions a perimeter wall screening starts from.
| Provision | What it says | Why it matters for a boundary wall |
|---|---|---|
| 708.2.4.4 | Walls designed by the strength method for out-of-plane loads (axial load ≤ 0.04f'm·Ag) at least 150 mm | Wind and earthquake push a freestanding wall out of plane |
| 709.4.1.3.1 | Minimum reinforcement for masonry that is not part of the lateral-force-resisting system: two MW11 joint wires at ≤ 400 mm for walls over 100 mm, one wire for walls not over 100 mm, or one 12 mm bar at ≤ 1.2 m | A 100 mm wall is a screen, not a structure |

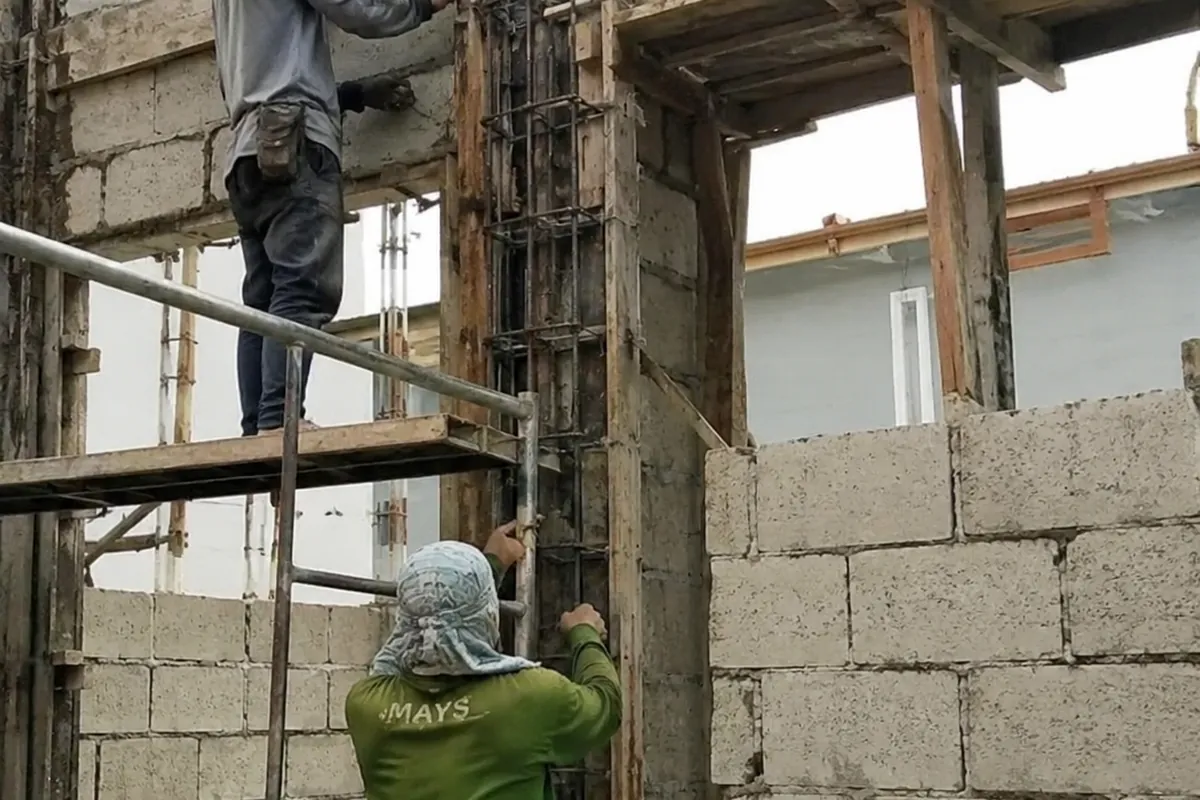

| 709.5.2 | Reinforced both ways; total steel ≥ 0.0020 × gross area, each direction ≥ 0.0007 | Stiffener columns alone don't reinforce the panel between them |
| 709.5.2 | Bar spacing ≤ 1.2 m if solid grouted with qualifying units, otherwise ≤ 600 mm | Bars at 800 mm in hollow blocks already exceed the limit |
| 709.5.4 | No Type N mortar or masonry cement in the lateral system | Type M or S mortar only |
| 707.2.14.2 | h'/t over 30 (effective height twice the height for a wall not supported at the top, 706.2.4; actual block thickness, 706.2.3.1) requires design from a structural analysis accounting for axial load and deflection | Tall thin walls need more than a rule of thumb |
One more that catches people out: Section 710's empirical design method and its height-to-thickness table are not available in Zone 4. Section 709.2.1 limits it to areas below Zone 2. If someone quotes an empirical h/t limit to justify a wall in Luzon, Visayas or Mindanao, ask where they found it.
Article 2190 of the Civil Code makes the proprietor of a building or structure responsible for damages from its total or partial collapse "if it should be due to the lack of necessary repairs". Article 2192 sends the injured party to the engineer, architect or contractor instead only where the damage comes from a construction defect covered by Article 1723.
On the regulatory side, PD 1096 Section 214 declares a structure dangerous where it's structurally unsafe or a hazard because of inadequate maintenance, dilapidation or abandonment. Section 215 directs the building official to order repair, vacation or demolition depending on the degree of danger.
Walk the full length, not a sample. Measure sections at representative points. Expose reinforcement and footing at a few locations to confirm what's actually there. Check the wall against NSCP 2015. Then give a recommendation per stretch: leave, repair, strengthen or rebuild. A bill of quantities for those works is what lets procurement budget and tender it. If there are no drawings at all, the as-built guide explains the measurement side.
Masonry provisions are from NSCP 2015 Chapter 7 (Sections 707.2.14.2, 708.2.4.4, 709.2.1, 709.4.1.3.1, 709.5.2 and 709.5.4) and the seismic zone from Section 208.4.4.1. Wall self-weight in the check uses NSCP Table 204-2 for hollow concrete masonry units of 16.5 kN/m³, unplastered and ungrouted, plus 0.24 kPa per plastered face. Liability provisions are Civil Code Articles 2190 and 2192; dangerous structures are PD 1096 Sections 214 and 215.
Is a 100 mm hollow block wall acceptable as a perimeter wall?
Not as a structural wall in Seismic Zone 4, which covers most of the country. NSCP 2015 Section 708.2.4.4 requires walls designed by the strength method for out-of-plane loads (axial load of 0.04f'm·Ag or less, which covers a freestanding wall) to be at least 150 mm thick, and a freestanding perimeter wall is loaded out of plane by wind and earthquake. Section 709.4.1.3 sets the minimum reinforcement for masonry that is not part of the lateral-force-resisting system, such as non-structural partition and screen walls: two MW11 joint wires at 400 mm for walls over 100 mm, one wire for walls not over 100 mm, or one 12 mm bar at 1.2 m.
Who is liable if a perimeter wall collapses?
Article 2190 of the Civil Code makes the proprietor of a building or structure responsible for damages from its total or partial collapse if it is due to the lack of necessary repairs. Where the damage results from a defect in construction covered by Article 1723, Article 2192 directs the injured third person to the engineer, architect or contractor instead. Either way, the question a court asks starts with whether the wall was maintained.
What reinforcement does a masonry wall need in Seismic Zone 4?
NSCP 2015 Section 709.5.2 requires reinforcement in both directions, with the horizontal and vertical steel together at least 0.0020 times the gross cross-sectional area and each direction at least 0.0007. Maximum bar spacing is 1.2 m where the wall is solid grouted and built of qualifying units, and 600 mm otherwise.
Can the building official order a dangerous wall repaired or demolished?
Yes. PD 1096 Section 214 declares structures dangerous where they are structurally unsafe or a hazard because of inadequate maintenance, dilapidation or abandonment, and Section 215 directs the building official to order repair, vacation or demolition depending on the degree of danger.
Is a leaning wall always unsafe?
Not automatically, and NSCP 2015 does not publish a tilt limit for accepting an existing wall. What matters is why it leans and whether it is still moving: a wall that tilted during construction and has been stable for years is a different case from one with a fresh horizontal crack at its base. That distinction needs a site inspection, repeated measurements and a look at the footing.
What should a perimeter wall assessment deliver?
A condition survey along the full length, measured sections at representative points, confirmation of reinforcement and footing where they can be exposed, a structural check against NSCP 2015, and a clear recommendation per stretch of wall: leave, repair, strengthen or rebuild. A bill of quantities for the recommended works turns that report into something procurement can act on.
Code provisions and statutes used in this guide. Links open in a new tab.
The screening check applies a limited set of prescriptive rules. It is not a structural design or an assessment, and it does not evaluate wind or seismic capacity, the footing or the soil.
Know which stretches can stay, which need strengthening and what the rest will cost to replace.
